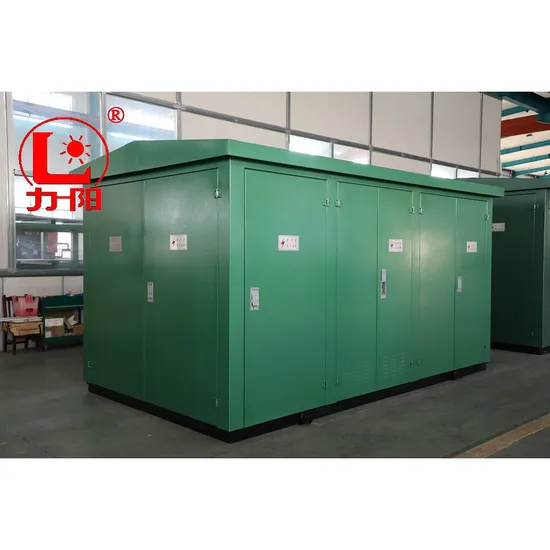

IP56 ISO9001 Transformer European Outdoor Prefabricated Compact Power Supply Distribution Cabin High Voltage Electrical Combined Box Package Substation

• Overview
• Product Description
• Specification
• FAQ

Overview

Basic Info.

Certification	ISO9001:2000, VDE, CCC
Form	All- packaged Type
Operation Voltage	High Voltage
Size	1 Uint
Application Range	Power Plants
Shell Material	Stainless Steel
Shell Protection Grade	IP56
Brand	Liyang
Warranty	12 Months
ODM	Avaliable
OEM	Avaliable
Certificate	CE/ISO
Transport Package	Wooden Case
Specification	as per design
Trademark	liyang electric
Origin	China
HS Code	8537209000
Production Capacity	6000pieces/Year

Packaging & Delivery

Package Size200.00cm * 100.00cm * 100.00cm Package Gross Weight100.000kg

Product Description

Product Description

Product Advantages

Authoritative product certification: ISO, CE, CCC, etc

- Perfect SQA quality management system to ensure high quality products

- Quick quotation, can provide electrical design services

- The delivery period is short, and the fastest delivery time is 10-15 days worldwide

- Perfect after-sales service system, so that customers buy worry-free

- Welcome customers to visit the factory guidance, provide OEM/ODM

If you are interested in becoming our company's foreign agent,please contact us!

This series of intelligent box substation is by the high voltage unit, power transformer, low voltage unit, measurement unit and intelligent system, optimize the combined into a complete intelligent power supply complete sets of equipment, its function, wide use, more safe and reliable operation, nice appearance, and has convenient installation, covers an area of less, less maintenance, less investment, quick effect, long service life, etc. It can be used as transformer and distribution equipment for urban buildings, residential areas, municipal facilities, factories, mines, highways, wharves, oil fields and temporary electricity departments and places.
Working Environment1. Ambient temperature: -25ºC~+40ºC2. Altitude: no more than 1000m3. Relative humidity:Daily average less than 95% Average value of water vapor pressure less than 2.2kpaMonthly average less than 90% Average value of water vapor pressure less than 1.8kpa4. Seismic intensity:less than magnitude 85 .Outside wind speed less than 35m/s6. Place Installation : Apply to the places have no fire,no explosion danger and no chemical corrosion . We can produce this substation as customer's requirement according to their drawing and need.

Specification

Rated capacity (kVA)		Voltage combinations			The join group designator		No-load loss (W)	Load loss (W)	Impedance voltage (%)	No-load current (W)
		high pressure(kV)	Taps(%)	Low voltage(kV)
30		66.31010.511	±5% or ±2x2.5	0.4	Dyn11 orYyn0		80	600/630	4.0	2.3
50							100	870/910		2
63							110	1040/1090		1.9
80							130	1250/1310		1.9
100							150	1500/1580		1.8
125							170	1800/1890		1.7
160							200	2200/2310		1.6
200							240	2600/2730		1.5
250							290	3050/3200		1.4
315							340	3650/3830		1.4
400							410	4300/4520
500							480	5100/5410		1.2
630							570	6200	4.5	1.1
800							700	7500		1
1000							830	10300		1
1250							970	12000		0.9
1600							1170	14500		0.8

Payment Term

Q:what's your major products?
A: oil immersed transformer, dry type transformer, Transformer Substation, High and Low Voltage Switchgear

Q: Can your product be customized?
A: Considering differences in voltage, frequency and other special transformer product in different countries and regions, our product can be customized according to your requirements.

Q: When can I get the price?
A:Usually we quote within 24 hours after we get your inquiry.

Q: What about lead or shipping time?
A: The lead time depends on the quantity you ordered, generally within 15 days upon receipt of advance payment.

Q: What is the price of shipping?
A: Depending upon the port of delivery, prices varies.

Q: Do you offer guarantee for the products?
A: Yes. We offer at least one years guarantee for all of our transformers.

Q: Your Advantage?
A: 15 years experience, Advanced production equipment, Stable quality, Fast delivery, Professional & good & Prompt service. Also some free parts can be provided for you.

Payment Terms	T/T	EXW	30% T/T in advance, the balance to be paid before dispatch
		FOB
		CIF	30% T/T in advance, the balance to be paid against the copy of B/L
		CFR (C&F)
	L/C	Irrevocable L/C at sight could be accepted if amount above US $50,000.00
Delivery Time	7 to 10 working days after receiving advanced payment
