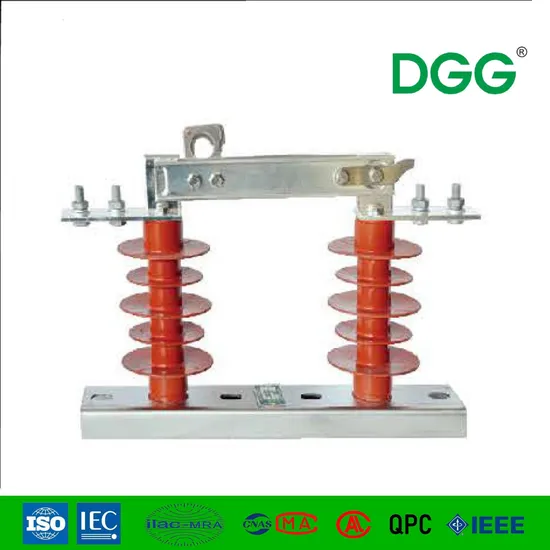

High/Medium Voltage Load Break Super Quality 15kv 400A Outdoor Neutral Earthing 3phases Disconnect Switch Power Disconnector

Basic Info.

Model NO.	GW4A
Installation	Outdoor High-voltage
Operation	Electric
Grounding Mode	Grounding
Movement Mode	Horizontal Rotary Type
Number of Poles	Three Pole
Structure of Operating	Electric
Rated Frequency	50Hz
Rated Voltage	12kv
Rated Current	630(1250)a
Rated Peak Withstand Current	50(63)Ka
Transport Package	Export Box
Trademark	DGG
Origin	China
HS Code	853530900
Production Capacity	10000PCS/Yea

Packaging & Delivery

Package Size80.00cm * 30.00cm * 45.00cm Package Gross Weight30.000kg

Product Description

Our factory

We are professional manufacturer of current transformer ,voltage transformer, Vacuum Circuit Breakers/Recloser,Isolation switches,Dropout Fuse Cut-out,Lightning Arresters,High and Low Voltage Cabinets,Metering Devices,Power Distribution Transformers etc.

General

This GW4 outdoor high voltage switch equipment of single phase AC 50Hz.The product is suitable for power systems with a rated voltage of 10kV to make or break power supply under circumstances of voltage and no load. The isolator adopts an isolated hook rod to operate.

Service conditions

1. The altitude does not exceed 1000m.2. The ambient air temperature: Maximum:+40ºC; Minimum:-30ºC, Paramos:-40ºC3. The wind pressure does not exceed 700Pa. (corresponding to 34m/s wind speed).4. The earthquake intensity does not exceed 8 degrees.5. The working situation hasn't frequent violent vibration.6. The installation site of an ordinary type isolator should be kept away from gas, smoke chemical deposition,salt-spray fog, dust, and other explosive and corrosive matters that affect seriously the insulation and conduction capability of the isolator.7. Pollution-proof type isolator is applied to severe filthy conduction area; however, it shouldn't be any explosive matters and matters causing a fire.

Test Reports
All products have undergone professional testing and certification.

Our Customer

Our customers are located all over the world.

Photos of Product

Technical parameters
No.	Item		Unit	Data
1	Rated frequency		Hz	50
2	Rated voltage		kV	12
3	Rated current		A	630(1250)
4	Rated short-time withstand current and duration		kA/s	20(25)/4
5	Rated peak withstand current		kA	50(63)
6	Rated short-time power frequency withstand voltage	Interphase, to earth(dry)	kV/min	42/1
		Interphase, to earth(wet)		30/1
		Break(dry)		48/1
		Break(wet)		36/1
7	Rated lightning impulse withstand voltage	Interphase, to earth	kV	75
		Break		85
8	Circuit resistance		μΩ	≤80
9	Mechanical life		Times	3000
10	Pollution grade			e class
11	Creepage distance		mm	≥372
Note: If the altitude is over 1000m, the rated insulation level should be modified as appropriate.
