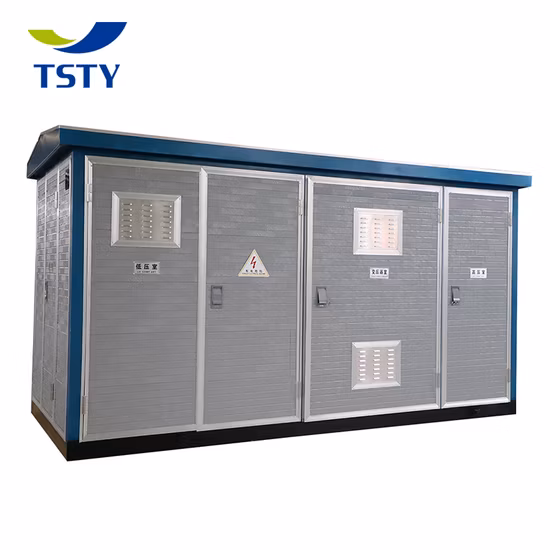

Ybp 100kVA 10kv 400V Electrical Box Type Prefabricated Compact Transformer Substation

Ybp 100kVA 10kv 400V Electrical Box Type Prefabricated Compact Transformer Substation

Overview YBP 100kva 10kv 400v Electrical Box Type Prefabricated Compact Transformer Substation Product Parameters Produc
Overview
Basic Info.
Model NO. YBP
Usage Combined Transformer, Power Transformer, Distribution Transformer
Frequency Characteristics Power Frequency
Shape of Core Ring
Brand Tsty
Impedance Voltage 4%
Frequency 50/60Hz
Rated Capacity 100kVA
Low Voltage 0.4kv
Insulation Class F
Transport Package Wooden Case
Trademark TSTY
Origin Henan, China
Production Capacity 30 Unit/Day
Product Description

YBP 100kva 10kv 400v Electrical Box Type Prefabricated Compact Transformer Substation

Product Parameters
Rated Capacity100kVA
High Voltage10/11kV
Low Voltage0.4kV
Impedance Voltage4%
No-load Loss0.4kW
Load Loss1.57kW
No-load Current0.7%
Frequency50/60Hz
Connection GroupYyn0/Dyn11
Cooling MethodAN/AF
Product Description

Box-type substation is also called prefabricated substation or prefabricated substation. It is a high-voltage switchgear, distribution transformer and low-voltage power distribution device, which organically combines the functions of transformer step-down and low-voltage power distribution, and It is installed in a moisture-proof, rust-proof, dust-proof, rodent-proof, fire-proof, anti-theft, Heat-insulated, fully enclosed, movable steel structure box.

Product Advantages

mechatronics, fully enclosed operation, high safety; simple installation, simple equipment maintenance, no need for special personnel on duty; beautiful appearance, easy to coordinate with the environment, and long-term outdoor use.

Ordering instructions

The customer shall provide the following information:

- Schematic diagram of primary loop and system diagram of secondary loop

- Electrical schematic diagram and terminal layout of auxiliary circuit

- Equipment layout drawing, combination drawing and floor plan

- Model, specification and quantity of main electrical components of the equipment

- Inlet and outlet methods and cable specifications

- Equipment enclosure material and color

- Other special requirements can be negotiated with the manufacturer

Company Profile

TSTY Electric Co., Ltd. was established in 2011 and is located in Jiaxian County, Henan Province. It is a digital management enterprise integrating R&D, production, sales and installation of power equipment. The company's products cover 6kv, 11kv, 22kv, 35kv, etc. Power transformers, distribution transformers, box-type substations, high and low voltage switchgear, wind power, photovoltaic power generation equipment, etc.TSTY Products are sold to the Middle East, North America, South America, Europe, Southeast Asia, Africa and other regions, covering more than 40 countries.At present, the company has three factory areas including dry transformer workshop, oil transformer workshop and intelligent complete workshop, with a construction area of 250,000 square meters, 360 employees, and 128 invention patents. The technical performance of the products has reached the advanced level in the same industry in the world, and the quality is safe and reliable. The products have passed IEC, SGS, intertek, CCC, CE and other international certifications.

Ybp 100kVA 10kv 400V Electrical Box Type Prefabricated Compact Transformer Substation

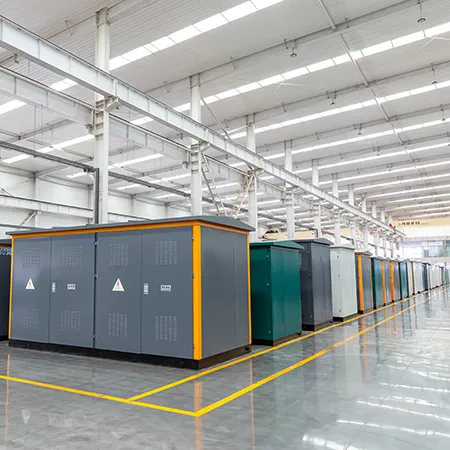

CertificationsProduction EquipmentsCustomer Case

Ybp 100kVA 10kv 400V Electrical Box Type Prefabricated Compact Transformer Substation

Customer visitFAQ

Q:what's your major products?

A: oil immersed transformer, dry type transformer, Transformer Substation, High and Low Voltage Switchgear Q: Can your product be customerized? A: Considering differences in voltage, frequency and other speciality of transformer product in different countries and regions,our product can be customerized according to your requirements. Q: When can I get the price? A:Usually we quote within 24 hours after we get your inquiry. Q: What about lead or shipping time? A: The lead time depends on the quantity you ordered, generally within 15 days upon receipt of advance payment. Q: What is the price of shipping? A: Depending upon the port of delivery, prices varies. Q: Do you offer guarantee for the products? A: Yes. We offer at least one years guarantee for all of our transformers. Q: Your Advantage?
A: 15 years experience, Advanced production equipments, Stable quality, Fast delivery, Professional & good & Prompt service. Also some free parts can be provided for you.
